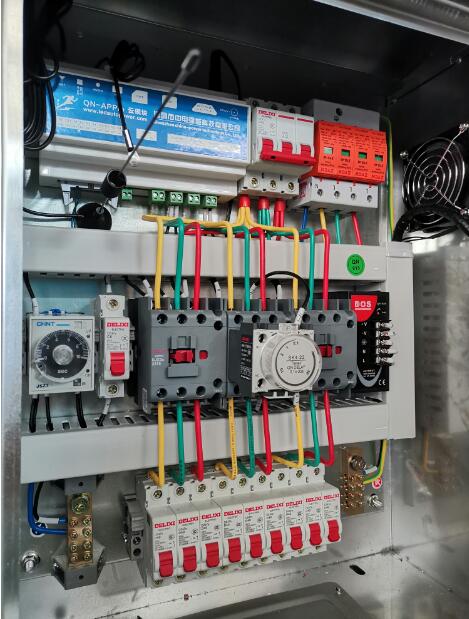

QN-APP/e /15KW  cloud power box
     Cloud distribution box is suitable for LED display screen, LED lighting, highway, industrial and mining enterprises and other purposes. It can be manually controlled, computer controlled, mobile phone or pad network control, RS-485 control. It can control hundreds of electric boxes at the same time
   QN-APP/e cloud module is selected as the main control device
   Communication interface: RS485 (standard configuration) + rj45-lan (standard configuration) + 4G (optional configuration)
1）It can be controlled by mobile phone and computer
2）It can be controlled by lan-web and cloud (extranet)
3）It can be connected to network cable control and 4G wireless network control
4）It can be controlled by MODBUS-RTU (RS-485)
5）Control hundreds of electrical boxes at the same time (centralized control system of intelligent distribution cabinet)
6）Step start, step close，Central control
7）Output 6 channels, each 3.5kw
8）Size: 500h * 400W * 200thk
9）weight：16KG
